BH15LB1WHFV - Standard CMOS LDO Regulators

BH15LB1WHFV Description

CMOS LDO Regulator Series for Portable Equipments Standard CMOS LDO Regulators BH ŜŜ FB1WG series, BHŜŜ FB1WHFV series, BH ŜŜ LB1WG series, BHŜŜ LB1WH.
The BHŜŜFB1W, BHŜŜLB1W and BHŜŜMA3W series are low dropout CMOS regulators with 150 mA and 300 mA output that have ±1% high accuracy output voltage.

BH15LB1WHFV Features

* 1) High accuracy output voltage: ±1% 2) High ripple rejection ratio: 70 dB (BHŜŜFB1WHFV/WG, BHŜŜLB1WHFV/WG) 3) Low dropout voltage: 60 mV (when current is 100 mA) (BHŜŜMA3WHFV) 4) Stable with ceramic output capacitors 5) Low Bias current : 40µA (IO = 50 mA) (BHŜŜFB1WHFV/WG) 6) Output voltage ON/OFF

📥 Download Datasheet

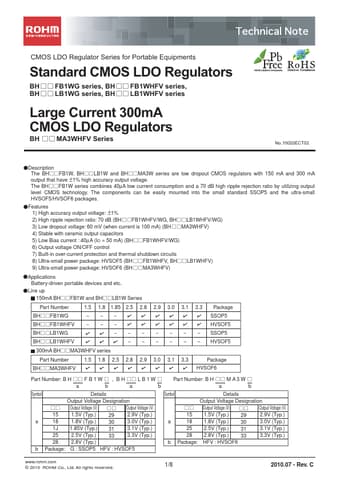

Preview of BH15LB1WHFV PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
BH15LB1WHFV
Manufacturer
ROHM ↗
File Size
697.25 KB
Datasheet
BH15LB1WHFV_Rohm.pdf
Description
Standard CMOS LDO Regulators
