BH7236 Datasheet - Rohm

Color TV Signal Encoder

BH7236 Features

* 1) Can be adapted for NTSC and PAL formats. 2) Internal burst timing signal generator with half-H killer. 3) Internal flip-flop for PAL phase switching. 4) Separate Y / C output pins. 5) Analog RGB signal output pins. 6) Internal 75Ω driver. (outputs color TV signals, luminosity signals,

BH7236 General Description

Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 Pin name GND1 RIN GIN BIN N. C. SCIN NT / PAL BFPOUT N. C. SYNCIN SYNCOUT VCC1 N. C. N. C. COUT YOUT YTRAP N. C. VCC2 VOUT BOUT GOUT ROUT GND2 Function Ground for all drivers other than the 75Ω driver. Analog R signal input. Dri.

BH7236 Datasheet (71.97 KB)

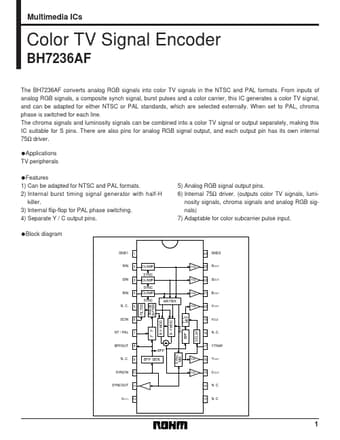

BH7236 Datasheet Preview — Preview of BH7236 PDF

Datasheet Details

Part number:

BH7236

Manufacturer:

ROHM ↗

File Size:

71.97 KB

Description:

Color tv signal encoder.
Multimedia ICs Color TV Signal Encoder BH7236AF The BH7236AF converts analog RGB signals into color TV signals in the NTSC and PAL formats. From inpu.
