BH7236AF Datasheet, Encoder, Rohm

BH7236AF Features

• Encoder
• 1) Can be adapted for NTSC and PAL formats. 2) Internal burst timing signal generator with half-H killer. 3) Internal flip-flop for PAL phase switching. 4) Separate Y / C outp

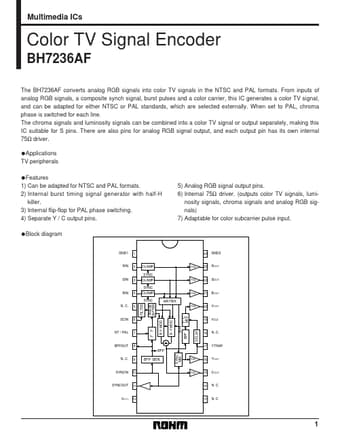

PDF File Details

Part number:

BH7236AF

Manufacturer:

ROHM ↗

File Size:

71.97kb

Download:

📄 Datasheet

Description:

Color tv signal encoder. Pin No. 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 Pin name GND1 RIN GIN BIN N. C. SCIN NT / PAL BFPOUT N. C. SY

BH7236AF Application

• Applications
• TV peripherals Features
• 1) Can be adapted for NTSC and PAL formats. 2) Internal burst timing signal generator with
