BH76109HFV Low Current Consumption Single Output Video Drivers

This video amplifier with built-in LPF uses a full output swing type output stage to make low voltage operation at Vcc = 2.6V possible. In addition to advantages such as a tiny package and low power consumption, bands of the built-in LPF provide for 4.5 MHz products for DSC and other portable equipm.

BH76109HFV Features

* 1) Wide operating voltage range: Vcc = 2.6 V~5.5 V 2) Built-in 8th order LPF 3) Built-in sync-tip clamp circuit 4) Compact HVSOF6 package (3.0 mm × 1.6 mm × 0.75 mm) 5) Built-in standby function Standby current: 0 μA (typ.) 6) Selectable gain 6dB (BH76106HFV, BH76206HFV), 9dB (BH76109HFV), 12dB (BH7

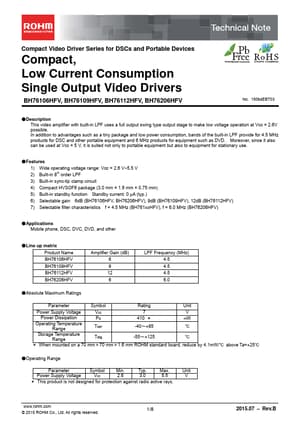

BH76109HFV Datasheet (461.24 KB)
