BH76809FVM Output Capacitor-less Video Drivers

Composite Video Amplifier Output Capacitor-less Video Drivers BH76806FVM, BH76809FVM, BH76812FVM, BH76816FVM No.14064EBT02 *.
The BH768xxFVM series video drivers are the optimum solution for high density integration systems such as, digital still cameras, mobile phones, and p.

BH76809FVM_Rohm.pdf

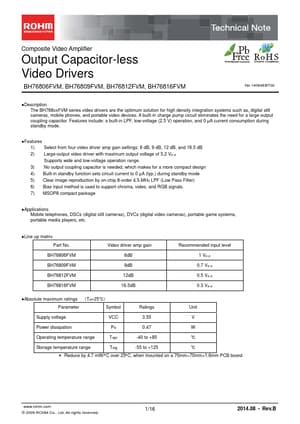

BH76809FVM Datasheet Preview — Preview of BH76809FVM PDF

Datasheet Details

Part number:

BH76809FVM

Manufacturer:

ROHM ↗

File Size:

496.27 KB

Description:

Output Capacitor-less Video Drivers

Features

* include: a built-in LPF, low-voltage (2.5 V) operation, and 0 µA current consumption during standby mode.
* Features 1) Select from four video driver amp gain settings: 6 dB, 9 dB, 12 dB, and 16.5 dB 2) Large-output video driver with maximum output voltage of 5.2 VP-P Supports wide and low-voltag

Applications

* Mobile telephones, DSCs (digital still cameras), DVCs (digital video cameras), portable game systems, portable media players, etc.
* Line up matrix Part No. BH76806FVM BH76809FVM BH76812FVM BH76816FVM Video driver amp gain 6dB 9dB 12dB 16.5dB Recommended input level 1 VP-P 0.7 VP-P 0.5 VP-P 0.
