BH76816FVM - Output Capacitor-less Video Drivers

Rohm

📥 Download Datasheet

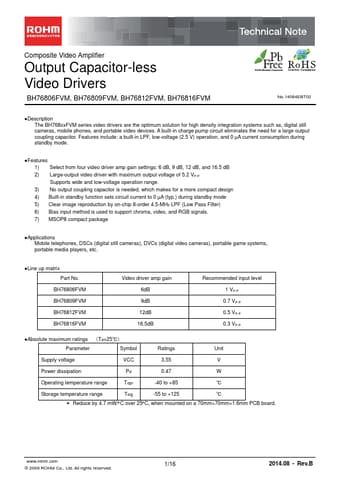

BH76816FVM Datasheet Preview — Preview of BH76816FVM PDF

Datasheet Details

Part number: BH76816FVM
Manufacturer: ROHM ↗
File Size: 496.27 KB
Datasheet: BH76816FVM_Rohm.pdf
Description: Output Capacitor-less Video Drivers

BH76816FVM Product details

Description

The BH768xxFVM series video drivers are the optimum solution for high density integration systems such as, digital still cameras, mobile phones, and portable video devices.

Features

1) Select from four video driver amp gain settings: 6 dB, 9 dB, 12 dB, and 16.5 dB 2) Large-output video driver with maximum output voltage of 5.2 VP-P Supports wide and low-voltage operation range. 3) No output coupling capacitor is needed, which makes for a more compact design 4) Built-in standby function sets circuit current to 0 µA (typ. ) during standby mode 5) Clear image reproduction by on-chip 8-order 4.5-MHz LPF (Low Pass Filter) 6) Bias input method is used to support chroma, video, and.
