BP5310 - PCMCIA / flash memory power supply

Product Overview

Rohm

Datasheet Details

Part number	BP5310
Manufacturer	ROHM
File Size	59.14 KB
Description	PCMCIA / flash memory power supply
Datasheet	BP5310 Datasheet
Additional preview pages of the BP5310 datasheet.

Product details

Description

BP5310 FApplication examples (1) Flash memory that requires 5V for reading FOperation notes (1) Place I / O external capacitors as near as possible to the connection pins.In particular, make sure to minimize the impedance between the input-side capacitor (C1) and pin 9. (Reference value: A length less than 50mm for a copper foil of 1.0mm wide and 35µm thickness.) (2) Avoid frequent switching using the ON / OFF CTL pin (five times per second at the maximum).379 Regulator ICs (2) Pull-dow

Features

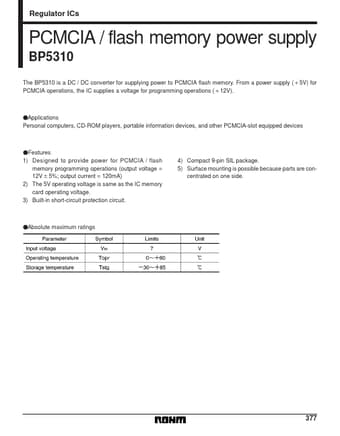

1) Designed to provide power for PCMCIA / flash memory programming operations (output voltage = 12V ± 5%; output current = 120mA) 2) The 5V operating voltage is same as the IC memory card operating voltage. 3) Built-in short-circuit protection circuit. 4) Compact 9-pin SIL package. 5) Surface mounting is possible because parts are concentrated on one side. FAbsolute maximum ratings 377 Regulator ICs FElectrical characteristics (unless otherwise noted, Ta = 25_C, VCTL = 5V) BP5310 FMeasurem.
