BP5311xA Datasheet - Rohm

DC / DC converter

BP5311xA Features

* 1) High conversion efficiency 2) Built-in protection circuit 3) Built-in ON/OFF switch. 4) Compact and light. 5) Surface mounting is possible because parts are concentrated on one side. 6) Available as an upright or L-shaped lead type. Absolute maximum ratings (Ta=25°C) Parameter Power supply volta

BP5311xA General Description

Pin No. 1 2 3 4, 7 8 Pin name Co VOUT Vref GND VCTL Function Output smoothing capacitor connection pin ; connect a low-impedance capacitor with a recommended capacitance of 47µF between this and GND. Output pin. Output voltage adjustment pin for contrast ; output voltage is adjusted by connecting a.

BP5311xA Datasheet (72.56 KB)

Preview of BP5311xA PDF

Datasheet Details

Part number:

BP5311xA

Manufacturer:

ROHM ↗

File Size:

72.56 KB

Description:

Dc / dc converter.

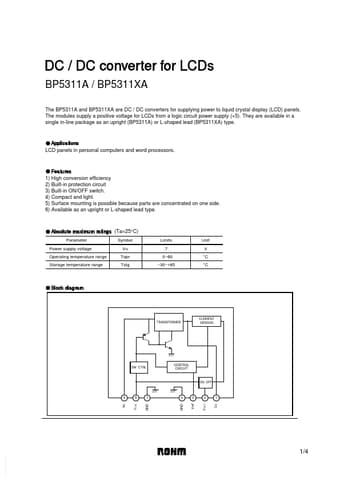

DC / DC converter for LCDs BP5311A / BP5311XA The BP5311A and BP5311XA are DC / DC converters for supplying power to liquid crystal display (LCD) pane.
