BP5801

High efficiency switching-type motor driver

BP5801 Features

* 1) Electrical power loss is small even when there is a difference between the input voltage and motor driving voltage, since electrical power conversion efficiency is high (90% Typ.) as the switching system is employed for changing the voltage. 2) Motor driving voltage can be set to any optional val

BP5801 General Description

Pin No. 1 2 3 5,6 7,8 9 Pin name OUT TP CTL GND TP VIN Function Output pin for motor drive : connect a low impedance capacitor with a recommended capacitance of 470µF / 35V. Test pin ; use this internally connected pin in OPEN mode. Output voltage control pin ; PWM signal or DC signal is inputted. .

BP5801 Datasheet (65.16 KB)

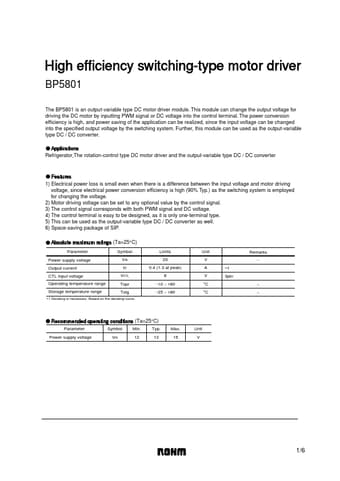

Preview of BP5801 PDF

Datasheet Details

Part number:

BP5801

Manufacturer:

ROHM ↗

File Size:

65.16 KB

Description:

High efficiency switching-type motor driver.
High efficiency switching-type motor driver BP5801 The BP5801 is an output-variable type DC motor driver module. This module can change the output vol.
