BP5807

High efficiency switching-type motor driver

BP5807 Features

* 1) Electrical power loss is small even when there is a difference between the input voltage and motor driving voltage, since electrical power conversion efficiency is high (90% Typ.) as the switching system is employed for changing the voltage. 2) Motor driving voltage can be set to any optional val

BP5807 General Description

Pin No. 1,13,14 3,12,16 4 6 7 8 9 11 17 Pin name VM GND Vo1 CTL1 CTL2 CTL3 Vcc Vo2 Vo3 Function Input power supply pin for motor drive ; connect a low impedance capacitor with a recommended capacitance of 100µF/35V. Ground pin Output pin for motor drive (ch1) ; connect a low impedance capacitor wi.

BP5807 Datasheet (98.88 KB)

Preview of BP5807 PDF

Datasheet Details

Part number:

BP5807

Manufacturer:

ROHM ↗

File Size:

98.88 KB

Description:

High efficiency switching-type motor driver.
www.DataSheet4U.com High efficiency switching-type motor driver BP5807 The BP5807 is an output-variable type 3-output DC motor driver module. This mo.

📁 Related Datasheet

BP5801 High efficiency switching-type motor driver (Rohm)

BP5811 Broad output DC/DC Converter (Rohm)

BP5812 DC/DC Converter (Rohm)

BP5818DJ Switch dimming/color-adjusting linear constant current LED control chip (BPS)

BP5841 High-power LED Drivers (Rohm)

BP5841-1 High-power LED Drivers (Rohm)

BP5841A High-power LED Drivers (Rohm)

BP5841A1 High-power LED Drivers (Rohm)

BP5842 High-power LED Drivers (Rohm)

BP5842A High-power LED Drivers (Rohm)

TAGS

BP5807 High efficiency switching-type motor driver Rohm

Image Gallery

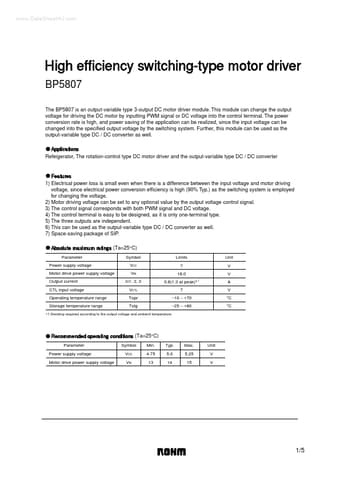

BP5807 Datasheet Preview Page 2 BP5807 Datasheet Preview Page 3
