BR24C01AF-W, BR2 I2C BUS compatible serial EEPROM

Rohm

Description

BR24C01A-W / BR24C01AF-W / BR24C01AFJ-W / BR24C01AFV-W / BR24C02-W / BR24C02F-W / Memory ICs BR24C02FJ-W / BR24C02FV-W / BR24C04-W / BR24C04F-W / BR.
Pin name A0, A1, A2 SCL SDA WP VCC GND Function Slave address setting pin Serial data clock Serial data input / output Write protect pin Power supply.

📥 Download Datasheet

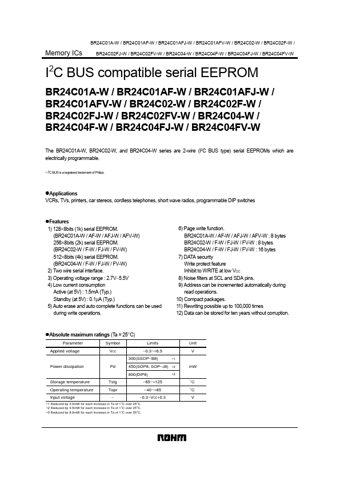

BR24C01AF-W Datasheet Preview — This datasheet PDF includes multiple part numbers: BR24C01AF-W, BR2. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: BR24C01AF-W, BR2
Manufacturer: ROHM ↗
File Size: 341.38 KB
Datasheet: BR2-4C0.pdf
Description: I2C BUS compatible serial EEPROM
Note: This datasheet PDF includes multiple part numbers: BR24C01AF-W, BR2.
Please refer to the document for exact specifications by model.

Features

* 1) 128×8bits (1k) serial EEPROM. (BR24C01A-W / AF-W / AFJ-W / AFV-W) 256×8bits (2k) serial EEPROM. (BR24C02-W / F-W / FJ-W / FV-W) 512×8bits (4k) serial EEPROM. (BR24C04-W / F-W / FJ-W / FV-W) 2) Two wire serial interface. 3) Operating voltage range : 2.7V∼5.5V 4) Low current consumption Active (at
