BU2872AK

FL tube driver

BU2872AK Features

* 1) High withstanding voltage output. 2) Display modes: 11S × 11G ~16S × 4G 3) Variable display luminance (7 steps). 4) 3-wire serial interface. 5) Key scanning function (6 × 4). 6) Internal pull-down resistance (high withstanding voltage output). 7) QFP 44-pin package.

* Block dia

BU2872AK General Description

Pin No. 14, 38 44 7, 43 6 5 8 9 15 ~ 25 27 37 ~ 32 Pin VDD OSC VSS SI SO SCK CS S1 ~ S11 VEE G1 ~ G6 Name Power supply pin 1 Oscillation pin GND pin Serial data input Serial data output Serial clock input Serial chip select High withstanding voltage output pin for segment Power supply pin 2 High wi.

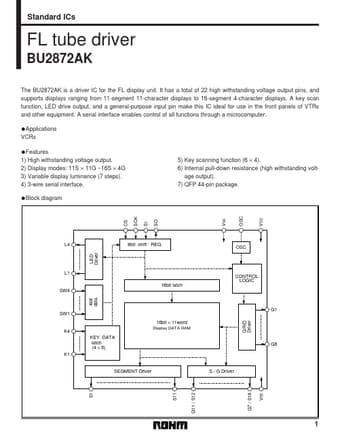

BU2872AK Datasheet (49.03 KB)

Preview of BU2872AK PDF

Datasheet Details

Part number:

BU2872AK

Manufacturer:

ROHM ↗

File Size:

49.03 KB

Description:

Fl tube driver.
Standard ICs FL tube driver BU2872AK The BU2872AK is a driver IC for the FL display unit. It has a total of 22 high withstanding voltage output pins,.
