BU4015B Datasheet - Rohm

BU4015B - Dual 4-bit static shift register

Standard ICs Dual 4-bit static shift register BU4015B / BU4015BF The BU4015B and BU4015BF are 4-stage static shift registers, each consisting of two circuits. The D flip-flops for each stage share a common reset input, enabling external asynchronous reset at any point. Also, the flip-flops at each stage are triggered by the rising edge of the clock input. “H” level reset input resets the contents of all stages to “L”, regardless of the clock and data input, and sets data outputs Q0 to Q3 to “L”.

BU4015B Features

* 1) Low power dissipation. 2) Wide range of operating power supply voltages. 3) High input impedance. 4) High fan-out. 5) Direct drive of 2 L-TTL inputs and 1 LS-TTL input.

* Block diagram CLOCK B Q3B 1 16 VDD 2 CL Q2B 3 R D 14 RESET B Q0B 15 DB

* Logic circuit diagram Q0 Q

BU4015B_Rohm.pdf

Preview of BU4015B PDF

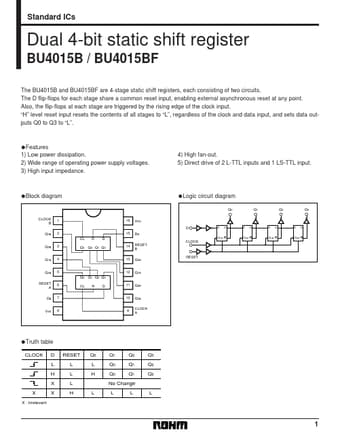

BU4015B Datasheet Preview Page 2 BU4015B Datasheet Preview Page 3

Datasheet Details

Part number:

BU4015B

Manufacturer:

ROHM ↗

File Size:

50.14 KB

Description:

Dual 4-bit static shift register.
