BU4015BF

Dual 4-bit static shift register

BU4015BF Features

* 1) Low power dissipation. 2) Wide range of operating power supply voltages. 3) High input impedance. 4) High fan-out. 5) Direct drive of 2 L-TTL inputs and 1 LS-TTL input.

* Block diagram CLOCK B Q3B 1 16 VDD 2 CL Q2B 3 R D 14 RESET B Q0B 15 DB

* Logic circuit diagram Q0 Q

BU4015BF Datasheet (50.14 KB)

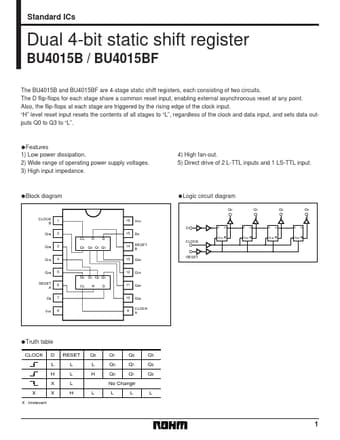

Preview of BU4015BF PDF

Datasheet Details

Part number:

BU4015BF

Manufacturer:

ROHM ↗

File Size:

50.14 KB

Description:

Dual 4-bit static shift register.
Standard ICs Dual 4-bit static shift register BU4015B / BU4015BF The BU4015B and BU4015BF are 4-stage static shift registers, each consisting of two .
