BU9206

PS / 2 Mouse Controller

BU9206 Features

* 1) For PS / 2 mouse. 2) Compatible with a wide range of input signals, because it automatically sets the input threshold levels for the X and Y direction, corresponding to the output level of the rotary encoder inside the mouse. 3) CMOS process enables low current consumption.

* A

BU9206 General Description

Pin No. Pin name I/O Function Right switch input Pull-up resistor built in Low active SWR SWL I / O format 1 SWR IN Typ.38kΩ 2 SWL IN Left switch input Pull-up resistor built in Low active 3 4 5 6 XA XB YA YB IN IN IN IN Rotary encoder X-direction, A-phase input Rotary encoder X-direct.

BU9206 Datasheet (62.03 KB)

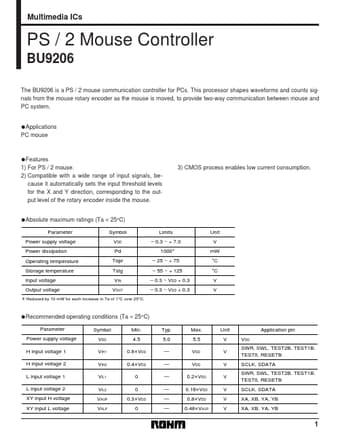

Preview of BU9206 PDF

Datasheet Details

Part number:

BU9206

Manufacturer:

ROHM ↗

File Size:

62.03 KB

Description:

Ps / 2 mouse controller.
Multimedia ICs PS / 2 Mouse Controller BU9206 The BU9206 is a PS / 2 mouse communication controller for PCs. This processor shapes waveforms and coun.
