BU920P - Silicon NPN Power Transistor

Product Overview

📥 Download Datasheet

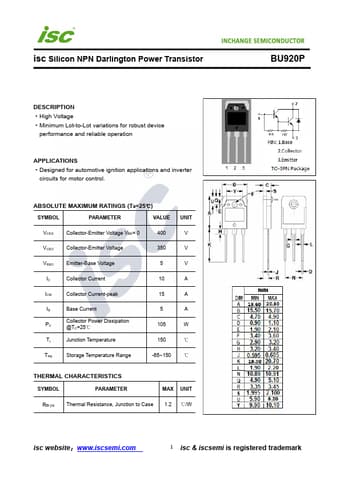

Datasheet preview – BU920P

Datasheet Details

Part number BU920P
Manufacturer Inchange Semiconductor
File Size 217.40 KB
Description Silicon NPN Power Transistor
Datasheet download datasheet BU920P Datasheet
Additional preview pages of the BU920P datasheet.

Product details

Description

High Voltage Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for automotive ignition applications and inverter circuits for motor control.ABSOLUTE MAXIMUM RATINGS (Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCES Collector-Emitter Voltage VBE= 0 400 V VCEO Collector-Emitter Voltage 350 V VEBO Emitter-Base Voltage 5 V IC Collector Current 10 A ICM Collector Current-peak 15 A IB Base Current PC Collector
