DTB114 - Digital transistors

Rohm

📥 Download Datasheet

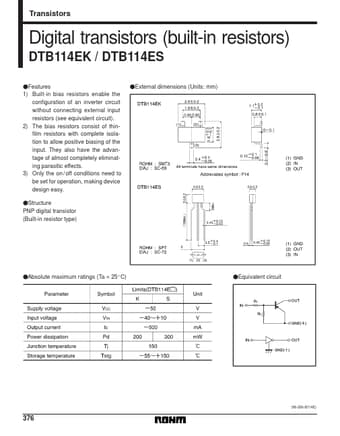

DTB114 Datasheet Preview — Preview of DTB114 PDF

datasheet Preview Page 2

Datasheet Details

Part number	DTB114
Manufacturer	ROHM
File Size	60.93 KB
Description	Digital transistors
Datasheet	DTB114_Rohm.pdf

DTB114 Product details

Features

1) Built-in bias resistors enable the configuration of an inverter circuit without connecting external input resistors (see equivalent circuit). 2) The bias resistors consist of thinfilm resistors with complete isolation to allow positive biasing of the input. They also have the advantage of almost completely eliminating parasitic effects. 3) Only the on / off conditions need to be set for operation, making device design easy. FStructure PNP digital transistor (Built-in resistor type) FExternal.
