DTB114EK PNP -500mA -50V Digital Transistor

DTB114EK Description

DTB114EK PNP -500mA -50V Digital Transistor (Bias Resistor Built-in Transistor) Parameter VCC IC(MAX.) R1 R2 Value -50V -500mA 10kΩ 10kΩ l.

DTB114EK Features

* 1) Built-In Biasing Resistors, R1 = R2 = 10kΩ 2) Built-in bias resistors enable the configuration of 　an inverter circuit without connecting external 　input resistors (see inner circuit) . 3) Only the on/off conditions need to be set 　for operation, making the circuit design easy. 4) Complementary N

DTB114EK Applications

* ), please consult with the ROHM sales representative in advance. Unless otherwise agreed in writing by ROHM in advance, ROHM shall not be in any way responsible or liable for any damages, expenses or losses incurred by you or third parties arising from the use of any ROHM’s Products for Specific App

📥 Download Datasheet

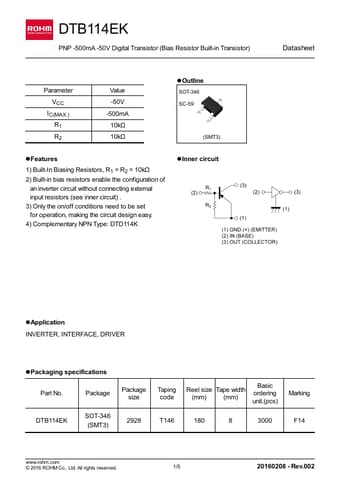

Preview of DTB114EK PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DTB114EK
Manufacturer
ROHM ↗
File Size
881.33 KB
Datasheet
DTB114EK_Rohm.pdf
Description
PNP -500mA -50V Digital Transistor
