IMT1A - General Purpose Dual Transistors

IMT1A Description

EMT1 / UMT1N / IMT1A General purpose transistor (dual transistors) Datasheet Parameter VCEO IC 　 Tr1 and Tr2 -50V -150mA 　 l.

IMT1A Features

* 1)Two 2SA1037AK chips in a EMT, UMT or 　 SMT package. 2)Mounting possible with EMT3, UMT3 or 　 SMT3automatic mounting machines. 3)Transistor elements are independent, 　 eliminating interference. 4)Mounting cost and area can be cut in half. lOutline EMT6 UMT6 　 SMT6 EMT1 SC-107C 　 　 　　 IMT1A SO

📥 Download Datasheet

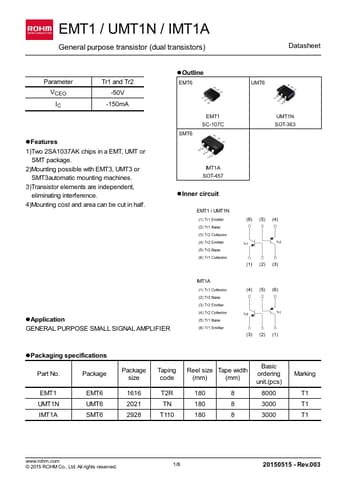

Preview of IMT1A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IMT1A
Manufacturer
ROHM ↗
File Size
2.78 MB
Datasheet
IMT1A_Rohm.pdf
Description
General Purpose Dual Transistors
