IMT2A - Dual Transistor

IMT2A Description

EMT2 / UMT2N / IMT2A General purpose transistor (dual transistors) Datasheet Parameter VCEO IC 　 Tr1 and Tr2 -50V -150mA 　 l.

IMT2A Features

* 1) Two 2SA1037AK chips in a EMT, UMT or 　　 SMT package. 2) Mounting possible with EMT3, UMT3 or SMT3 　　automatic mounting machines. 3) Transistor elements are independent, 　　eliminating interference. 4) Mounting cost and area can be cut in half. lOutline EMT6 UMT6 　 SMT6 EMT2 SOT-563 　 　 　　 IM

📥 Download Datasheet

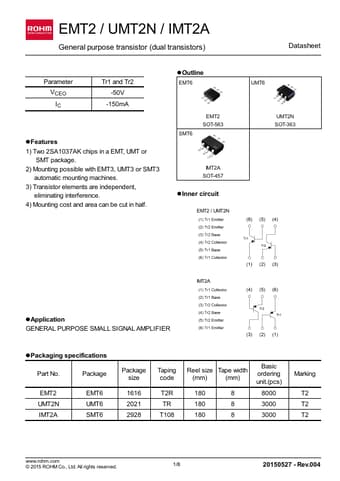

Preview of IMT2A PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IMT2A
Manufacturer
ROHM ↗
File Size
2.81 MB
Datasheet
IMT2A_Rohm.pdf
Description
Dual Transistor
