KA2002-BE13A - ECR 2.7V Print Voltage

Datasheet Summary

Features

  • 1) The B series brings reduced height of protective resin for IC and enlarged paper pathway for thermal papers. Thanks to ROHM’s latest LSI high integrated mounting technology and it’s ultra slim 192bit driver IC. 2) The B series accede the great world class low energy consumption characteristics of GP series. 3) Because the print heads circuits draw 2.7V, the printer can be driven using a single lithium ion battery. zDimensions (Unit : mm) 3.0 54 48(Effective print width) Dot #384 Dot #1 Ma.

📥 Download Datasheet

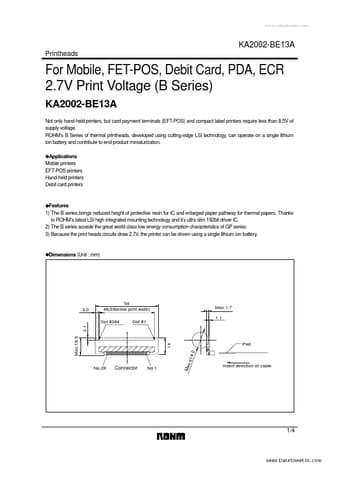

Datasheet preview – KA2002-BE13A

Datasheet Details

Part number KA2002-BE13A
Manufacturer ROHM
File Size 129.22 KB
Description ECR 2.7V Print Voltage
Datasheet download datasheet KA2002-BE13A Datasheet
Additional preview pages of the KA2002-BE13A datasheet.

📁 Similar Datasheet

  • KA2101 - LINEAR INTEGRATED CIRCUIT(TV SOUND IF AMPLIFIER) (Samsung)
  • KA2102A - TV SOUND SYSTEM (Samsung)
  • KA2107 - DC VOLUME/ TONE CONTROL CIRCUIT (Samsung)
  • KA2130A - TV Vertical Deflection (Samsung)
  • KA2131 - TV VERTICAL OUTPUT CIRCUIT (Samsung)
  • KA2133 - 1-CHIP DEFLECTION SYSTEM (Samsung)
  • KA2135 - HORIZONTAL SIGNAL PROCESSING (Samsung)
  • KA2138 - DEFLECTION PROCESSOR FOR CRY DISPLAY (Samsung)
  • KA2138N - DEFLECTION PROCESSOR FOR CRY DISPLAY (Samsung)
  • KA2139 - 3 CHANNEL R.G.B VIDEO AMPLIFIER (Samsung)
Other Datasheets by Rohm

Full PDF Text Transcription

Click to expand full text
www.DataSheet4U.com KA2002-BE13A Printheads For Mobile, FET-POS, Debit Card, PDA, ECR 2.7V Print Voltage (B Series) KA2002-BE13A Not only hand-held printers, but card payment terminals (EFT-POS) and compact label printers require less than 8.5V of supply voltage. ROHM’s B Series of thermal printheads, developed using cutting-edge LSI technology, can operate on a single lithium ion battery and contribute to end-product miniaturization. zApplications Mobile printers EFT-POS printers Hand-held printers Debit card printers zFeatures 1) The B series brings reduced height of protective resin for IC and enlarged paper pathway for thermal papers. Thanks to ROHM’s latest LSI high integrated mounting technology and it’s ultra slim 192bit driver IC.
