KA2004-BE51A - ECR 2.7V Print Voltage

Rohm

📥 Download Datasheet

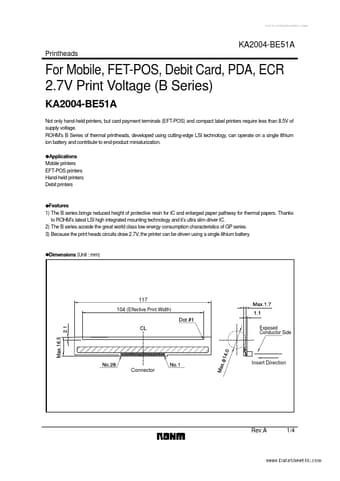

KA2004-BE51A Datasheet Preview — Preview of KA2004-BE51A PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	KA2004-BE51A
Manufacturer	ROHM
File Size	171.27 KB
Description	ECR 2.7V Print Voltage
Datasheet	KA2004-BE51A_Rohm.pdf

KA2004-BE51A Product details

Features

1) The B series brings reduced height of protective resin for IC and enlarged paper pathway for thermal papers. Thanks to ROHM’s latest LSI high integrated mounting technology and it’s ultra slim driver IC. 2) The B series accede the great world class low energy consumption characteristics of GP series. 3) Because the print heads circuits draw 2.7V, the printer can be driven using a single lithium battery. zDimensions (Unit : mm) 117 104 (Effective Print Width) Exposed Conductor Side Insert.
