KD2002-DG10A Datasheet - Rohm

KD2002-DG10A - Compact medium speed thick film thermal printhead

KD2002-DG10A Printheads Compact high speed thick film thermal printhead (8dots / mm) KD2002-DG10A Using its expertise in LSI technology, ROHM has developed new high density driver chips for use in the KD2002-DG10A .

Capable of being employed for both thermal and thermal transfer printing, with a print speed of 250mm/s, the resulting printheads are the fastest in their class.

The high-speed and high-density printing answers the needs of ATM, kiosk and ticket printing devices, which are increasin

KD2002-DG10A Features

* 1) The use of a special partial glaze and the latest heating element structure, along with new high-density driver chips that can accept big current, has allowed ROHM to achieve print speeds of 250mm/s, the fastest in its class. 2) One rank resistance value of 650Ω ± 3% eliminates the inconvenience

KD2002-DG10A_Rohm.pdf

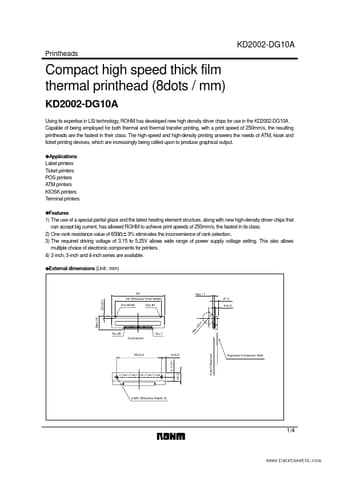

Preview of KD2002-DG10A PDF
KD2002-DG10A Datasheet Preview Page 2 KD2002-DG10A Datasheet Preview Page 3

Datasheet Details

Part number:

KD2002-DG10A

Manufacturer:

ROHM ↗

File Size:

61.47 KB

Description:

Compact medium speed thick film thermal printhead.
