LB-502DN High efficiency / two-digit numeric displays

LB-502DN Description

LB-502DN Series LED displays High efficiency, two-digit numeric displays LB-502DN Series The LB-502DN series were designed to meet the need for multi.

LB-502DN Features

* 1) Height of character: 13.0mm 2) Common anode and common cathode configurations are available for each color. 3) High efficiency reflectors are used to achieve a bright, clear display. 4) The package surface is painted black and the segments are colored the display color. 1.25 7.4 2
* φ1.25

📥 Download Datasheet

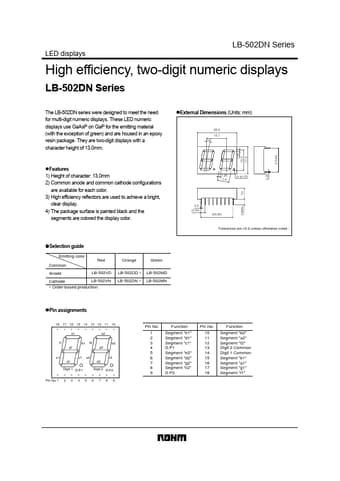

Preview of LB-502DN PDF
datasheet Preview Page 2

Datasheet Details

Part number
LB-502DN
Manufacturer
ROHM ↗
File Size
61.82 KB
Datasheet
LB-502DN_Rohm.pdf
Description
High efficiency / two-digit numeric displays
