LMR934F, LMR931G Input/Output Full Swing Low Power Operational Amplifiers

LMR934F Description

Datasheet Operational Amplifiers Series Input/Output Full Swing Low Power Operational Amplifiers LMR981G, LMR982FVM, LMR931G, LMR932F, LMR934F *G.
Input/Output Full Swing Low Voltage single, dual and quad Op-Amp integrates into a single chip.

LMR934F Features

* Low operating supply voltage
* Input/Output Full Swing
* High large signal voltage gain
* Low input bias current
* Low supply current
* Low input offset voltage

LMR934F Applications

* Portable equipment
* Low voltage application
* Active filter
* Supply-Current Monitoring
* Battery Monitoring
* Simplified Schematic VDD -IN +IN Class AB Control OUT SHDN (LMR981,LMR982) Figure 1. Simplified Schematic (1 channel only) VSS ○Product structure：Silicon m

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: LMR934F, LMR931G. Please refer to the document for exact specifications by model.

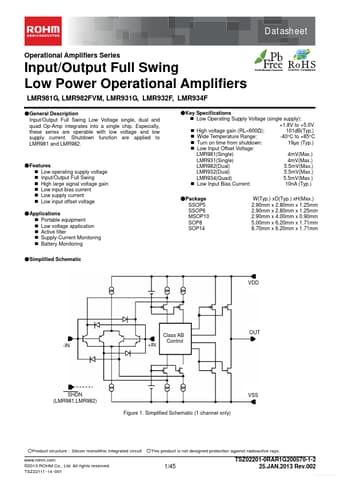

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
LMR934F, LMR931G
Manufacturer
ROHM ↗
File Size
325.04 KB
Datasheet
LMR931G_Rohm.pdf
Description
Input/Output Full Swing Low Power Operational Amplifiers
Note
This datasheet PDF includes multiple part numbers: LMR934F, LMR931G.
Please refer to the document for exact specifications by model.
