LMR981G, LMR931G, Input/Output Full Swing Low Power Operational Amplifiers

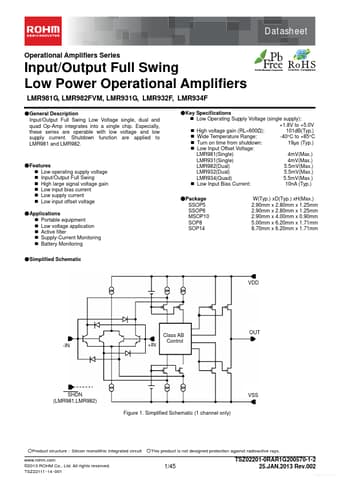

Datasheet Operational Amplifiers Series Input/Output Full Swing Low Power Operational Amplifiers LMR981G, LMR982FVM, LMR931G, LMR932F, LMR934F *G.
Input/Output Full Swing Low Voltage single, dual and quad Op-Amp integrates into a single chip.

LMR931G_Rohm.pdf

LMR981G Datasheet Preview — This datasheet PDF includes multiple part numbers: LMR981G, LMR931G. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

LMR981G, LMR931G

Manufacturer:

ROHM ↗

File Size:

325.04 KB

Description:

Input/Output Full Swing Low Power Operational Amplifiers

Note:

This datasheet PDF includes multiple part numbers: LMR981G, LMR931G.
Please refer to the document for exact specifications by model.

Features

* Low operating supply voltage
* Input/Output Full Swing
* High large signal voltage gain
* Low input bias current
* Low supply current
* Low input offset voltage

Applications

* Portable equipment
* Low voltage application
* Active filter
* Supply-Current Monitoring
* Battery Monitoring
* Simplified Schematic VDD -IN +IN Class AB Control OUT SHDN (LMR981,LMR982) Figure 1. Simplified Schematic (1 channel only) VSS ○Product structure：Silicon m
