LUM-115HML300 - 24 x 48 dot matrix unit

Rohm

📥 Download Datasheet

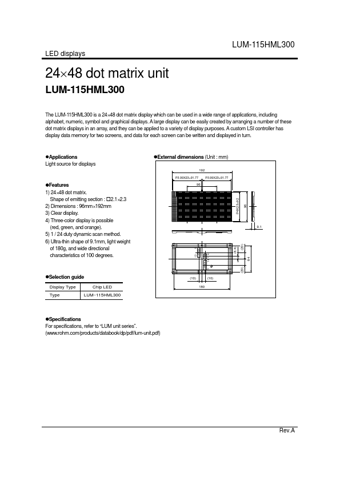

LUM-115HML300 Datasheet Preview — Preview of LUM-115HML300 PDF

datasheet Preview Page 2

Datasheet Details

Part number	LUM-115HML300
Manufacturer	ROHM
File Size	77.19 KB
Description	24 x 48 dot matrix unit
Datasheet	LUM-115HML300_Rohm.pdf

LUM-115HML300 Product details

Features

1) 24×48 dot matrix. Shape of emitting section : 2.1×2.3 2) Dimensions : 96mm×192mm 3) Clear display. 4) Three-color display is possible (red, green, and orange). 5) 1 / 24 duty dynamic scan method. 6) Ultra-thin shape of 9.1mm, light weight of 180g, and wide directional characteristics of 100 degrees. 96 P4X23=92 96 9.1 13 CN2 (8.4) (20) 1 Rev. A Appendix Notes No technical content pages of this document may be reproduced in any form or transmitted by any means without prior permiss.
