LUM-115HML303 - dot matrix unit

Rohm

📥 Download Datasheet

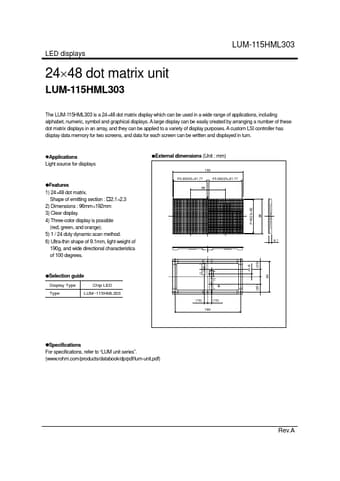

LUM-115HML303 Datasheet Preview — Preview of LUM-115HML303 PDF

datasheet Preview Page 2

Datasheet Details

Part number	LUM-115HML303
Manufacturer	ROHM
File Size	84.24 KB
Description	dot matrix unit
Datasheet	LUM-115HML303_Rohm.pdf

LUM-115HML303 Product details

Features

1) 24×48 dot matrix. Shape of emitting section : 2.1×2.3 2) Dimensions : 96mm×192mm 3) Clear display. 4) Three-color display is possible (red, green, and orange). 5) 1 / 24 duty dynamic scan method. 6) Ultra-thin shape of 9.1mm, light weight of 190g, and wide directional characteristics of 100 degrees. 96 P4X23=92 96 9.1 zSelection guide Display Type Type Chip LED LUM.
115HML303 CN3 13 1 6 13 (8.4) CN2 (20) (20) 84 1 CN1 (10) 180 (10) zSpecifications For specifications, re.
