LUM-512CMU320 dot matrix unit

LUM-512CMU320 Description

www.DataSheet4U.com LUM-512CMU320 LED displays 16×32 dot matrix unit LUM-512CMU320 The LUM-512CMU320 is a 16×32 dot matrix display which can be used.

LUM-512CMU320 Features

* 1) 16×32 dot matrix. Shape of emitting section : †1.1×1.3 2) Dimensions : 40mm×80mm 3) Clear display. 4) Three-color display is possible (red, green, and orange). 5) 1 / 16 duty dynamic scan method. 6) Ultra-thin shape of 8.2mm, light weight of 20g, and wide directional characteristics of 160 degree

LUM-512CMU320 Applications

* including alphabet, numeric, symbol and graphical displays. A large display can be easily created by arranging a number of these dot matrix displays in an array, and they can be applied to a variety of display purposes. A custom LSI controller has display data memory for two screens, and data for e

📥 Download Datasheet

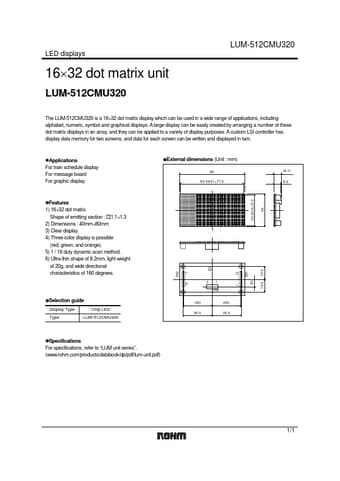

Preview of LUM-512CMU320 PDF
datasheet Preview Page 2
