LUM-512HML300 - dot matrix unit

Rohm

📥 Download Datasheet

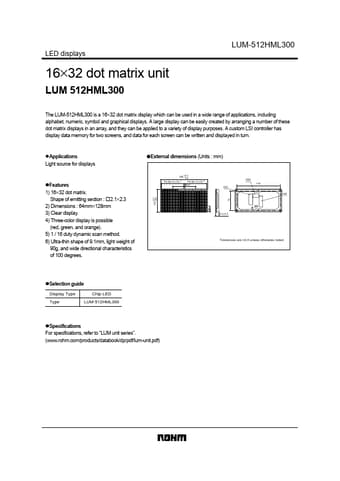

LUM-512HML300 Datasheet Preview — Preview of LUM-512HML300 PDF

Datasheet Details

Part number	LUM-512HML300
Manufacturer	ROHM
File Size	75.79 KB
Description	dot matrix unit
Datasheet	LUM-512HML300_Rohm.pdf

LUM-512HML300 Product details

Features

1) 16×32 dot matrix. Shape of emitting section : "2.1×2.3 2) Dimensions : 64mm×128mm 3) Clear display. 4) Three-color display is possible (red, green, and orange). 5) 1 / 16 duty dynamic scan method. 6) Ultra-thin shape of 9.1mm, light weight of 90g, and wide directional characteristics of 100 degrees. P3.98×15=59.7 P3.98×15=59.7 64.0 CN3 118 CN1 CN2 0.1 64+.
0.4 4.0 9.1±0.5 Tolerances are ±0.3 unless otherwise noted: !Selection guide Display Type Type Chip LED LUM-512HML300 !Sp.
