LUM-512HMU306 Datasheet dot matrix unit

Manufacturer: ROHM

LUM-512HMU306 dot matrix unit by ROHM - Datasheet Preview

Datasheet Details

Part number	LUM-512HMU306
Manufacturer	ROHM
File Size	73.48 KB
Description	dot matrix unit
Download	LUM-512HMU306 Download (PDF)

Overview

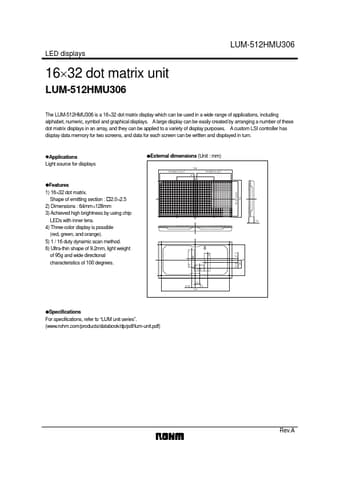

www.DataSheet4U.com LUM-512HMU306 LED displays 16×32 dot matrix unit LUM-512HMU306 The LUM-512HMU306 is a 16×32 dot matrix display which can be used in a wide range of applications, including alphabet, numeric, symbol and graphical displays.

A large display can be easily created by arranging a number of these dot matrix displays in an array, and they can be applied to a variety of display purposes.

A custom LSI controller has display data memory for two screens, and data for each screen can be written and displayed in turn.

Key Features

1) 16×32 dot matrix. Shape of emitting section : 2.0×2.5 2) Dimensions : 64mm×128mm 3) Achieved high brightness by using chip LEDs with inner lens. 4) Three-color display is possible (red, green, and orange). 5) 1 / 16 duty dynamic scan method. 6) Ultra-thin shape of 9.2mm, light weight of 95g and wide directional characteristics of 100 degrees. P4.0X15=60 64 9.2 1 CN2 (2.7) 54 CN1 13 Rev. A Appendix Notes No technical content pages of this document may be reproduced in any form or tra.
