LUM-512HMU308 - dot matrix unit

Rohm

📥 Download Datasheet

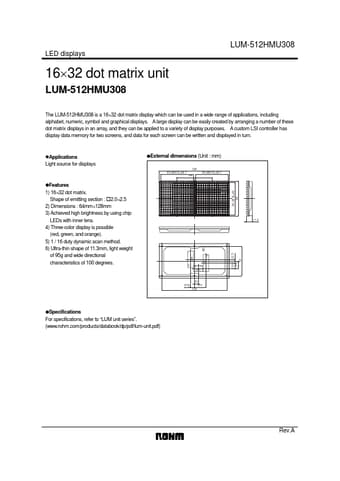

LUM-512HMU308 Datasheet Preview — Preview of LUM-512HMU308 PDF

datasheet Preview Page 2

Datasheet Details

Part number	LUM-512HMU308
Manufacturer	ROHM
File Size	80.01 KB
Description	dot matrix unit
Datasheet	LUM-512HMU308_Rohm.pdf

LUM-512HMU308 Product details

Features

1) 16×32 dot matrix. Shape of emitting section : 2.0×2.5 2) Dimensions : 64mm×128mm 3) Achieved high brightness by using chip LEDs with inner lens. 4) Three-color display is possible (red, green, and orange). 5) 1 / 16 duty dynamic scan method. 6) Ultra-thin shape of 11.3mm, light weight of 95g and wide directional characteristics of 100 degrees. P4.0X15=60 64 11.3 1 CN2 CN1 13 Rev. A Appendix Notes No technical content pages of this document may be reproduced in any form or transmitted.
