LUM-512HML303 - dot matrix unit

Rohm

📥 Download Datasheet

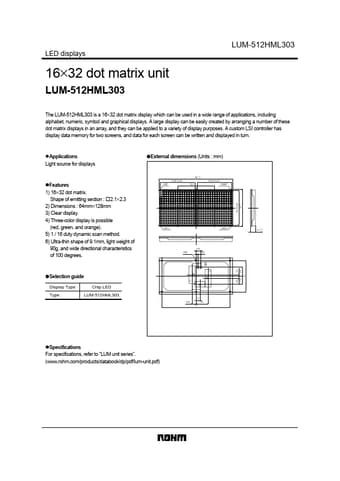

LUM-512HML303 Datasheet Preview — Preview of LUM-512HML303 PDF

Datasheet Details

Part number	LUM-512HML303
Manufacturer	ROHM
File Size	77.89 KB
Description	dot matrix unit
Datasheet	LUM-512HML303_Rohm.pdf

LUM-512HML303 Product details

Features

1) 16×32 dot matrix. Shape of emitting section : "2.1×2.3 2) Dimensions : 64mm×128mm 3) Clear display. 4) Three-color display is possible (red, green, and orange). 5) 1 / 16 duty dynamic scan method. 6) Ultra-thin shape of 9.1mm, light weight of 90g, and wide directional characteristics of 100 degrees. P3.98×15=59.7 LED1 64.0 P3.98×15=59.7 LED497 P4.0×15=60 LED16 LED512 64 +0.1.
0.4 9.1.
0.5 +0.8 (8.5) 6-M3 (3.4) VR VR 1 (2.7) 6 CN3 1 1 Display Type Type Chip LED L.
