LUM-512HML320 - dot matrix unit

Rohm

📥 Download Datasheet

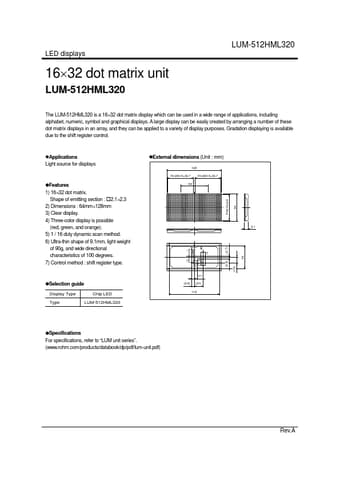

LUM-512HML320 Datasheet Preview — Preview of LUM-512HML320 PDF

datasheet Preview Page 2

Datasheet Details

Part number	LUM-512HML320
Manufacturer	ROHM
File Size	72.93 KB
Description	dot matrix unit
Datasheet	LUM-512HML320_Rohm.pdf

LUM-512HML320 Product details

Features

1) 16×32 dot matrix. Shape of emitting section : 2.1×2.3 2) Dimensions : 64mm×128mm 3) Clear display. 4) Three-color display is possible (red, green, and orange). 5) 1 / 16 duty dynamic scan method. 6) Ultra-thin shape of 9.1mm, light weight of 90g, and wide directional characteristics of 100 degrees. 7) Control method : shift register type. 64 P4X15=60 64 9.1 CN2 10 (2.7) 1 CN1 10 6 1 1 (7) zSelection guide Display Type Type Chip LED LUM-512HML320 (6.8) (21) 118 zSpecificatio.
