LUM-512HMU309 - dot matrix unit

Rohm

📥 Download Datasheet

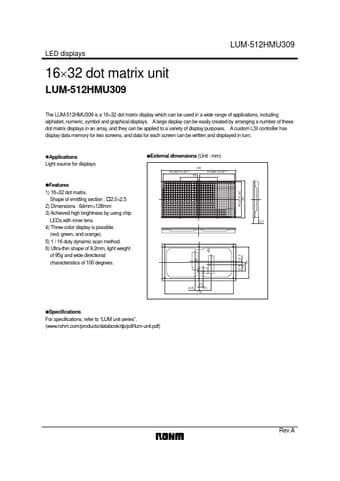

LUM-512HMU309 Datasheet Preview — Preview of LUM-512HMU309 PDF

datasheet Preview Page 2

Datasheet Details

Part number	LUM-512HMU309
Manufacturer	ROHM
File Size	72.67 KB
Description	dot matrix unit
Datasheet	LUM-512HMU309_Rohm.pdf

LUM-512HMU309 Product details

Features

1) 16×32 dot matrix. Shape of emitting section : 2.0×2.5 2) Dimensions : 64mm×128mm 3) Achieved high brightness by using chip LEDs with inner lens. 4) Three-color display is possible (red, green, and orange). 5) 1 / 16 duty dynamic scan method. 6) Ultra-thin shape of 9.2mm, light weight of 95g and wide directional characteristics of 100 degrees. P4.0X15=60 64 9.2 1 CN2 13 Rev. A Appendix Notes No technical content pages of this document may be reproduced in any form or transmitted by any.
