RB520CM-60

Schottky Barrier Diode

RB520CM-60 Features

* 1) Ultra small mold type (VMN2M) 2) High reliability 3) Low VF lConstruction Silicon epitaxial planar type 0~0.10 (2) 0.22±0.05 0.60±0.05 0.16±0.05 ROHM : VMN2M : Manufacture year/ week/ factory lTaping Dimensions (Unit : mm) f1.55±0.05 4.0±0.05 2.0±0.05 1.75±0.1 VMN2M (1) Cathode lStructure

RB520CM-60 Datasheet (507.94 KB)

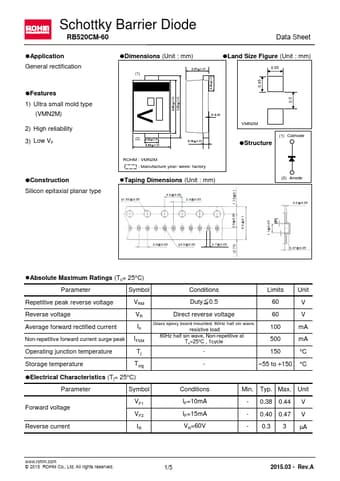

Preview of RB520CM-60 PDF

Datasheet Details

Part number:

RB520CM-60

Manufacturer:

ROHM ↗

File Size:

507.94 KB

Description:

Schottky barrier diode.
Schottky Barrier Diode RB520CM-60 lApplication General rectification lDimensions (Unit : mm) 0.37±0.05 (1) Data Sheet lLand Size Figure (Unit : mm).
