RB520CS30L - MEGA Schottky barrier rectifier

RB520CS30L Description

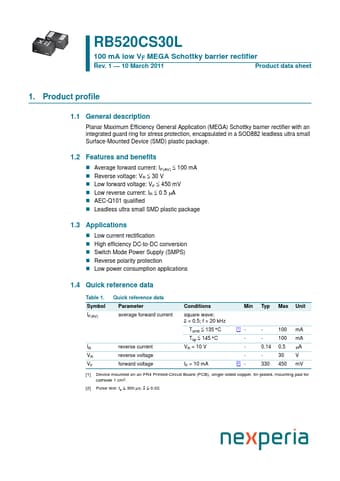

RB520CS30L 100 mA low VF MEGA Schottky barrier rectifier Rev.1 * 10 March 2011 Product data sheet 1.Product profile 1.1 General descrip.
Planar Maximum Efficiency General Application (MEGA) Schottky barrier rectifier with an integrated guard ring for stress protection, encapsulated in a.

RB520CS30L Features

* Average forward current: IF(AV) ≤ 100 mA
* Reverse voltage: VR ≤ 30 V
* Low forward voltage: VF ≤ 450 mV
* Low reverse current: IR ≤ 0.5 μA
* AEC-Q101 qualified

RB520CS30L Applications

* Low current rectification
* High efficiency DC-to-DC conversion
* Switch Mode Power Supply (SMPS)
* Reverse polarity protection
* Low power consumption applications 1.4 Quick reference data Table 1. Symbol IF(AV) Quick reference data Parameter average for
