RPM971-H14 IrDA Infrared Communication Module

Rohm

RPM971-H14 Description

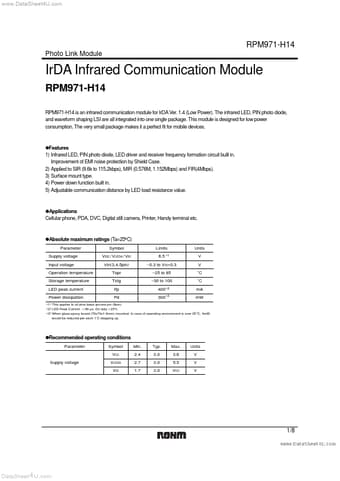

www.DataSheet4U.com RPM971-H14 Photo Link Module IrDA Infrared Communication Module RPM971-H14 RPM971-H14 is an infrared communication module for Ir.
Pin No Terminal Circuit Function LED Anode Terminal Other power source can be used difference between LEDVCC and VCC.

RPM971-H14 Features

* 1) Infrared LED, PIN photo diode, LED driver and receiver frequency formation circuit built in. Improvement of EMI noise protection by Shield Case. 2) Applied to SIR (9.6k to 115.2kbps), MIR (0.576M, 1.152Mbps) and FIR(4Mbps). 3) Surface mount type. 4) Power down function built in. 5) Adjustable com

RPM971-H14 Applications

* Cellular phone, PDA, DVC, Digital still camera, Printer, Handy terminal etc. zAbsolute maximum ratings (Ta=25°C) Parameter Supply voltage Input voltage Operation temperature Storage temperature LED peak current Power dissipation Symbol Vcc / VLEDA / VIO Vin(3,4,5pin) Topr Tstg Ifp Pd Limits 6.5 ∗1

📥 Download Datasheet

RPM971-H14 Datasheet Preview — Preview of RPM971-H14 PDF

Datasheet Details

Part number: RPM971-H14
Manufacturer: ROHM ↗
File Size: 250.62 KB
Datasheet: RPM971-H14_Rohm.pdf
Description: IrDA Infrared Communication Module
