RPM-012PB Datasheet - Rohm

RPM-012PB High Sensitivity Chip Sensor

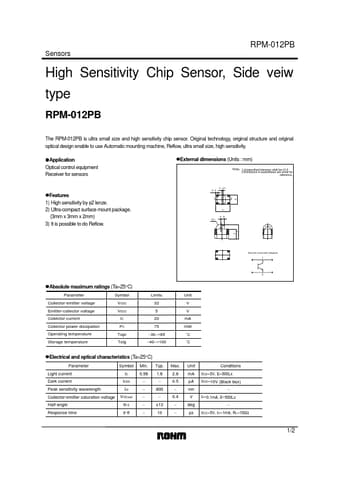

RPM-012PB Sensors High Sensitivity Chip Sensor, Side veiw type RPM-012PB The RPM-012PB is ultra small size and high sensitivity chip sensor. Original technology, original structure and original optical design enable to use Automatic mounting machine, Reflow, ultra small size, high sensitivity. zApplication Optical control equipment Receiver for sensors zExternal dimensions (Units : mm) Note) 1.Unspecified tolerance shall be + 0.2. 2.Dimension in parenthesis are show for reference. 0..

RPM-012PB Features

* 1) High sensitivity by φ2 lenze. 2) Ultra-compact surface mount package. (3mm x 3mm x 2mm) 3) It is possible to do Reflow. 1 2 3 0.8 R1 2 3 2 Internal connection diagram 1 2 zAbsolute maximum ratings (Ta=25°C) Parameter Collector-emitter voltage Emitter-collector voltage Collector current C
