RPM5300 Datasheet - Rohm

RPM5300 - IR Receiver

Pin No.

1 2 3 4 5 6 7 Pin name VCC GND GND GND ROUT GND GND Function POWER SUPPLY GROUND GROUND GROUND OUTPUT TERMINAL GROUND GROUND zElectrical, Optical characteristics (Unless otherwise noted, Ta = 25°C VCC=5V) Parameter Consumption Current Effective Distance High Level Output Voltage Low Level O

RPM5300 Features

* 1) Small size, SMD type. 2) Low current consumption. (300µA Typ.) 3) High ripple rejection. 4) Top view package type & Side view package type. 5) High sensitivity, such as leed type IR Receiver, because of using “the Dual Receiving Lens”. zRPM5300 series Sub carrier frequency 36.7kHz 37.9kHz 40.0kH

RPM5300_Rohm.pdf

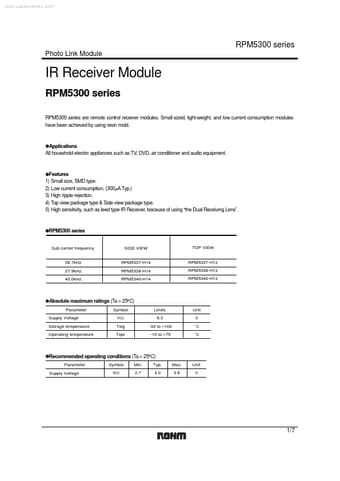

Preview of RPM5300 PDF
RPM5300 Datasheet Preview Page 2 RPM5300 Datasheet Preview Page 3

Datasheet Details

Part number:

RPM5300

Manufacturer:

ROHM ↗

File Size:

133.60 KB

Description:

Ir receiver.
