RTL020P02 - DC-DC Converter

RTL020P02 Description

www.DataSheet4U.com RTL020P02 Transistors DC-DC Converter ( *20V, *2.0A) RTL020P02 z.

RTL020P02 Features

* 1) Low on-resistance. (80mΩ at 2.5V) 2) High power package. 3) High speed switching. 4) Low voltage drive. (2.5V) zExternal dimensions (Unit : mm) TUMT6 0.2 2.0±0.1 0.1 0.3 +

RTL020P02 Applications

* DC-DC converter (1) Drain (2) Drain (3) Gate (4) Source (5) Drain (6) Drain 0.2 1pin mark 0.65 0.65 1.3±0.1 0.17±0.05 Each lead has same dimensions Abbreviated symbol : WU zStructure Silicon P-channel MOS FET zEquivalent circuit (6) (5) (4) ∗2 zPackaging specifications Package Type RTL020P

📥 Download Datasheet

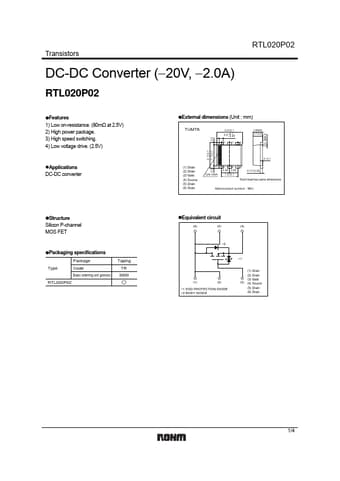

Preview of RTL020P02 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RTL020P02
Manufacturer
ROHM ↗
File Size
115.43 KB
Datasheet
RTL020P02_Rohm.pdf
Description
DC-DC Converter
