RTL030P02 - DC-DC Converter

RTL030P02 Description

www.DataSheet4U.com RTL030P02 Transistors DC-DC Converter ( *20V, *3.0A) RTL030P02 !.

RTL030P02 Features

* 1) Low on-resistance. (80mΩ at 2.5V) 2) High power package. 3) High speed switching. 4) Low voltage drive. (2.5V) !External dimensions (Unit : mm) TUMT6 0.2 2.0±0.1 0.1 0.3 +

RTL030P02 Applications

* DC-DC converter (1) Drain (2) Drain (3) Gate (4) Source (5) Drain (6) Drain 0.2 1pin mark 0.65 0.65 1.3±0.1 0.17±0.05 Each lead has same dimensions Abbreviated symbol : WN !Structure Silicon P-channel MOS FET !Equivalent circuit (6) (5) (4) ∗2 !Packaging specifications Package Type RTL030P

📥 Download Datasheet

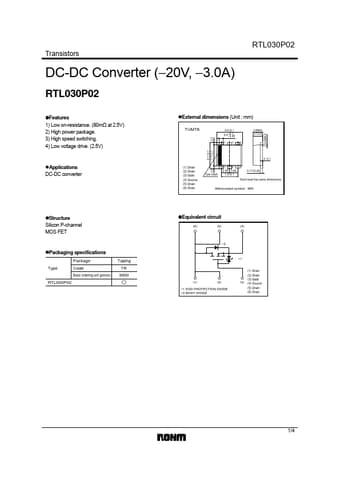

Preview of RTL030P02 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
RTL030P02
Manufacturer
ROHM ↗
File Size
104.00 KB
Datasheet
RTL030P02_Rohm.pdf
Description
DC-DC Converter
