TT8J1 - MOSFET

Features

1) Low On-resistance. 2) High Power Package. 3) Low voltage drive. (1.5V) (1) (2) (3) (4) Abbreviated symbol : J01 z.

Rohm

Datasheet Details

Part number	TT8J1
Manufacturer	ROHM
File Size	281.83 KB
Description	MOSFET
Datasheet	TT8J1 Datasheet
Additional preview pages of the TT8J1 datasheet.

📁 Similar Datasheet

TT8J11 - Dual P-Channel 20V MOSFET (VBsemi)
TT8486A - Product Specification (Tontek)
TT8486A - 3 STEPS TOUCH-DIMMER (ETC)

Other Datasheets by Rohm

TT8J11 - MOSFET
TT8J13 - MOSFET
TT8J2 - MOSFET
TT8J21 - MOSFET
TT8K1 - MOSFET
TT8K11 - MOSFET
TT8K2 - MOSFET
TT8M1 - MOSFET

Full PDF Text Transcription

Click to expand full text

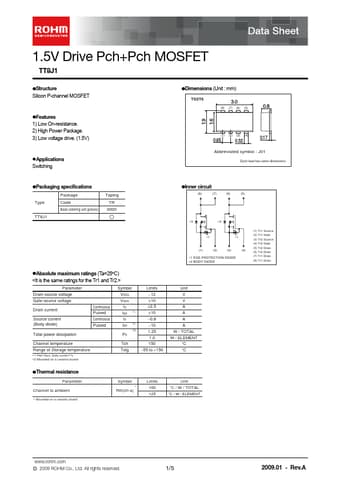

1.5V Drive Pch+Pch MOSFET TT8J1 zStructure Silicon P-channel MOSFET zDimensions (Unit : mm) TSST8 (8) (7) (6) (5) zFeatures 1) Low On-resistance. 2) High Power Package. 3) Low voltage drive. (1.5V) (1) (2) (3) (4) Abbreviated symbol : J01 zApplications Switching Each lead has same dimensions zPackaging specifications Package Type TT8J1 Code Basic ordering unit (pieces) Taping TR 3000 zInner circuit (8) (7) (6) (5) ∗2 ∗2 (1) Tr1 Source (2) Tr1 Gate (3) Tr2 Source (4) Tr2 Gate (5) Tr2 Drain (6) Tr2 Drain (7) Tr1 Drain (8) Tr1 Drain ∗1 www.DataSheet.co.kr ∗1 (1) (2) (3) (4) ∗1 ESD PROTECTION DIODE ∗2 BODY DIODE zAbsolute maximum ratings (Ta=25°C)
