ADL-66302TL Red Laser Diode

📥 Download Datasheet Datasheet Preview Page 1

Description

ADL-66302TL TECHNICAL DATA Red Laser Diode .

📥 Download Datasheet

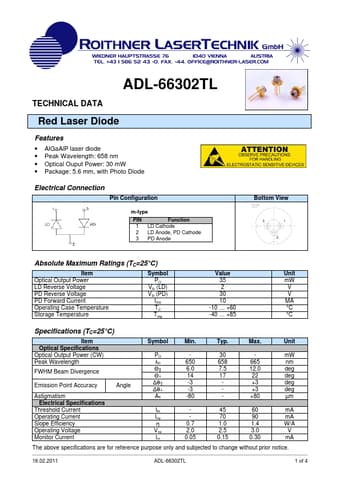

Preview of ADL-66302TL PDF
datasheet Preview Page 2 datasheet Preview Page 3

Features

* AlGaAlP laser diode
* Peak Wavelength: 658 nm
* Optical Ouput Power: 30 mW
* Package: 5.6 mm, with Photo Diode Electrical Connection Pin Configuration m-type PIN Function 1 LD Cathode 2 LD Anode, PD Cathode 3 PD Anode Bottom View Absolute Maximum Ratings (TC=25°C)
