* - Visible Light Output: λp = 635 nm (TM Mode) - Optical Power Output: 5 mW CW - Package Type : TO-18 (5.6 mmφ) - Built-in Photo Diode for Monitoring Laser Diode
* ELECTRICAL CONNECTION Bottom View Pin Configuration
* ABSOLUTE MAXIMUM RATING at Tc=25°C Items Optical Output Power Las
QL63D4SA
Roithner LaserTechnik
41.68 KB
Ingaalp laser diode.

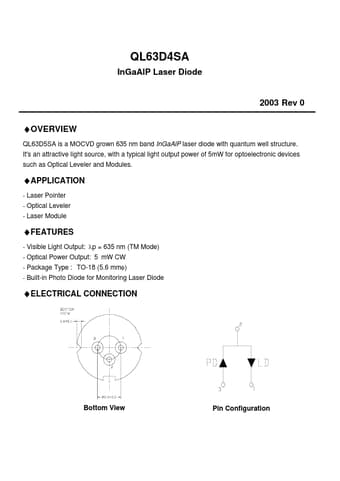

QL63D4SA
InGaAlP Laser Diode
2003 Rev 0
*OVERVIEW
QL63D5SA is a MOCVD grown 635 nm band InGaAlP laser diode with quantum well structure. It's .
