RLCO-980-3000-TO3 - High Power Infrared Laser Diode

Roithner LaserTechnik

📥 Download Datasheet

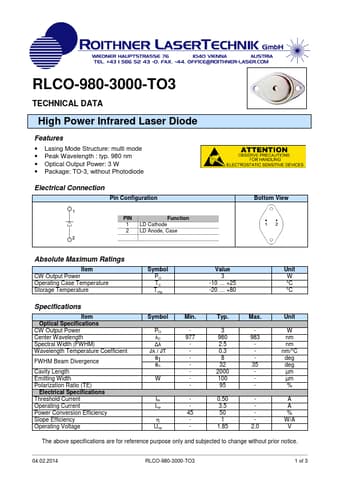

RLCO-980-3000-TO3 Datasheet Preview — Preview of RLCO-980-3000-TO3 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: RLCO-980-3000-TO3
Manufacturer: Roithner LaserTechnik
File Size: 216.34 KB
Datasheet: RLCO-980-3000-TO3-RoithnerLaserTechnik.pdf
Description: High Power Infrared Laser Diode

RLCO-980-3000-TO3 Product details

Features

Lasing Mode Structure: multi mode.
Peak Wavelength : typ. 980 nm.
Optical Output Power: 3 W.
Package: TO-3, without Photodiode Electrical Connection Pin Configuration PIN Function 1 LD Cathode 2 LD Anode, Case Bottom View Absolute Maximum Ratings Item CW Output Power Operating Case Temperature Storage Temperature Symbol PO TC Tstg Value 3 -10 … +25 -20 … +80 Unit W °C °C Specifications Item Optical Specifications CW Output Power Center Wavelength Spectr.
