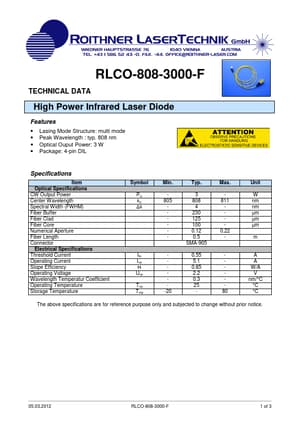

RLCO-808-3000-F - High Power Infrared Laser Diode

Roithner

Datasheet Details

Lasing Mode Structure: multi mode.
Peak Wavelength : typ. 808 nm.
Optical Ouput Power: 3 W.
Package: 4-pin DIL Specifications Item Optical Specifications CW Output Power Center Wavelength Spectral Width (FWHM) Fiber Buffer Fiber Clad Fiber Core Numerical Aperture Fiber Length Connector Electrical Specifications Threshold Current Operating Current Slope Efficiency Operating Voltage Wavelength Temperatur Coefficient Operating Temperature Storage Temperature S.
