RLT66100MGOP - High Power Red Laser Diode

Roithner Lasertechnik

📥 Download Datasheet

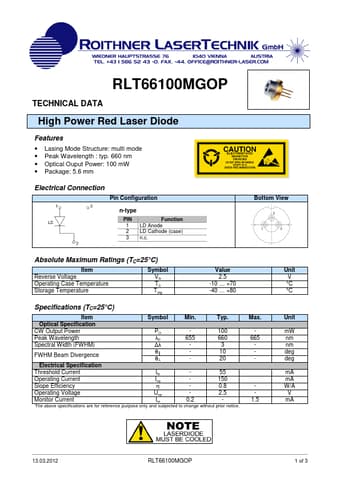

RLT66100MGOP Datasheet Preview — Preview of RLT66100MGOP PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number: RLT66100MGOP
Manufacturer: Roithner Lasertechnik
File Size: 217.54 KB
Datasheet: RLT66100MGOP-RoithnerLasertechnik.pdf
Description: High Power Red Laser Diode

RLT66100MGOP Product details

Features

Lasing Mode Structure: multi mode.
Peak Wavelength : typ. 660 nm.
Optical Ouput Power: 100 mW.
Package: 5.6 mm Electrical Connection Pin Configuration n-type PIN Function 1 LD Anode 2 LD Cathode (case) 3 n. c. Bottom View Absolute Maximum Ratings (TC=25°C) Item Reverse Voltage Operating Case Temperature Storage Temperature Symbol VR TC Tstg Value 2.5 -10 … +70 -40 … +80 Specifications (TC=25°C) Item Symbol Min. Typ. Optical Specification CW Output.
