LDA-38 - Laser Diode Assembly

Roithner

Datasheet Details

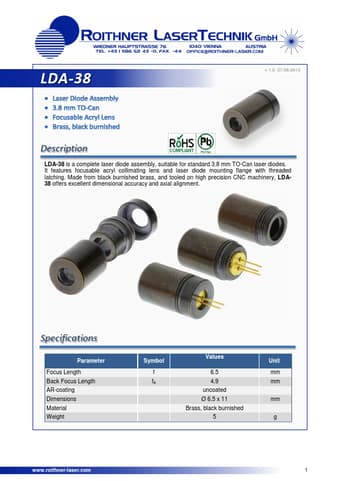

LDA-38 is a complete laser diode assembly, suitable for standard 3.8 mm TO-Can laser diodes.

focusable acryl collimating lens and laser diode mounting flange with threaded latching. Made from black burnished brass, and tooled on high precision CNC machinery, LDA38 offers excellent dimensional accuracy and axial alignment. Specifications Parameter Focus Length Back Focus Length AR-coating Dimensions Material Weight Symbol f fB Values 6.5 4.9 uncoated Ø 6.5 x 11 Brass, black burnished 5 Unit mm mm mm g www. roithner-laser. com 1 Drawing 10.3.
11.5 7.5 2.1 Ø 6.5 Ø 3.0 M 5x.
