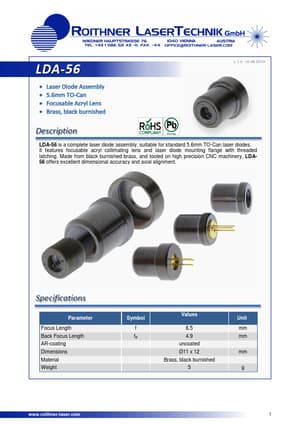

LDA-56 - Laser Diode Assembly

Roithner

Datasheet Details

LDA-56 is a complete laser diode assembly, suitable for standard 5.6mm TO-Can laser diodes.

focusable acryl collimating lens and laser diode mounting flange with threaded latching. Made from black burnished brass, and tooled on high precision CNC machinery, LDA56 offers excellent dimensional accuracy and axial alignment. Specifications Parameter Focus Length Back Focus Length AR-coating Dimensions Material Weight Symbol f fB Values 6.5 4.9 uncoated Ø11 x 12 Brass, black burnished 5 Unit mm mm mm g www. roithner-laser. com 1 Drawing 11.7.
13.0 8.5 4.0 Ø 9.0 M 6x0.5 Ø 3.
